Features and Advantages
• High useful working energy.
• Mechanical energy store.
• Overload protection by slipping wheel.
• Thermally stable ram guide ways with wear-proof guide gibs.
• High forging precision.
• No need to readjust ram with machine warming up.
• No jamming under load possible.
• Long Die life because of short Pressure-Contact Times.
• Sequence of different strokes on one work piece possible.
• Totally closed die forging capability.
Forging Hardware Components

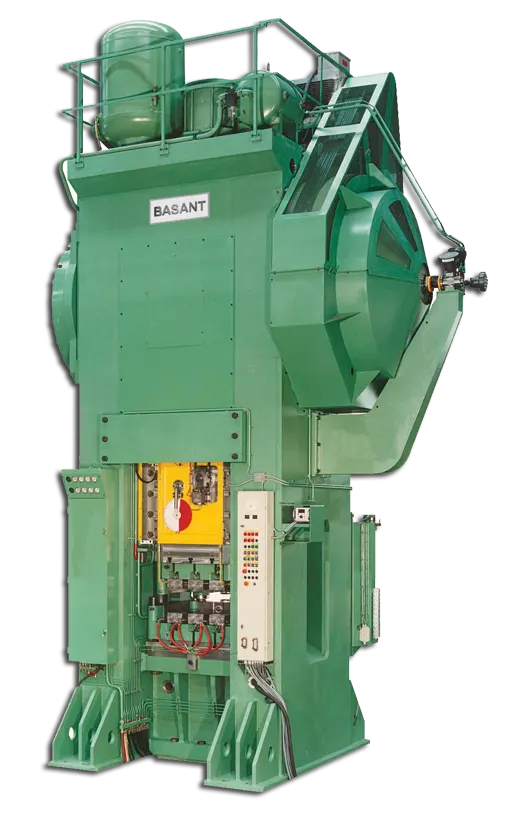

Technical Specification for Forging Press
Type | Nominal Capacity | Dia of Screw | Stroke | Slide Table | Pieces/Hour | Max.Dia of Bolt Capable Forging | Max.length of bolt Capable Forging | Foundaton | Pulley size | Power Required/H.P. (Approx.) Motor R.P.M. |
Tons | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | mm/inch | H.P./R.P.M | ||
VFP | 50 | 85/3¼ | 300/12 | 200/8 | 800-1200 | 12/½ | 250/10 | 840-585 | 100/4B | 3/1440 |
VFP | 100 | 110/4¼ | 400/16 | 225/9 | 600-1000 | 20/¾ | 300/12 | 930×610 | 100/4B | 7.5/1440 |
VFP | 125 | 115/4½ | 450/18 | 225/9 | 500-900 | 22/⅞ | 400/16 | 940×710 | 100/4B | 10/1440 |
VFP | 150 | 130/5⅛ | 500/20 | 250/10 | 400-700 | 32/1¼ | 450/18 | 1080×750 | 125/5C | 15/1440 |
VFP | 200 | 135/5⅜ | 550/22 | 275/11 | 300-600 | 38/1½ | 500/20 | 1115×790 | 125/5C | 20/1440 |
VFP | 300 | 155/6⅛ | 600/24 | 275/11 | 200-500 | 50/2 | 600/24 | 1200×860 | 200/8C | 25/960 |
VFP | 400 | 175/7 | 650/26 | 300/12 | 150-300 | 63/2½ | 650/26 | 1320×1000 | 200/8C | 30/960 |
VFP | 500 | 200/8 | 700/28 | 335/13 | 80-250 | 75/3 | 700/28 | 1470×1050 | 200/8C | 40/960 |
VFP | 630 | 225/9 | 760/30 | 355/14 | 70-225 | 90/3½ | 760/30 | 1525×1100 | 200/8C | 50/960 |
VFP | 800 | 250/10 | 810/32 | 380/15 | 60-200 | 100/4 | 810/32 | 1600×1150 | 200/8C | 60/960 |
VFP | 1000 | 275/11 | 865/34 | 405/16 | 50-150 | 115/4½ | 860/34 | 1750×1250 | 200/8C | 70/960 |
