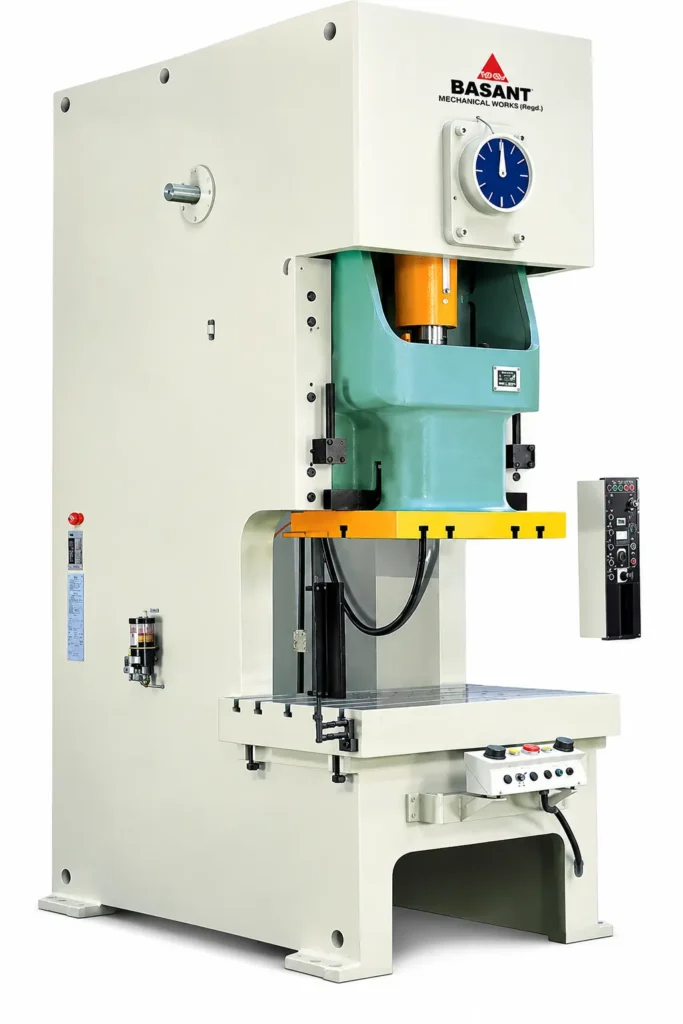

Cross Shaft Press Overview
Basant Mechanical Works is a trusted manufacturer of Ring Frame Cross Shaft Press machines, designed for heavy-duty industrial applications that demand high strength, precision, and stable operation under continuous load. The cross-shaft press design distributes pressing force evenly across the frame, reducing wear and improving stamping accuracy over long production runs. Available across multiple capacities, including our 200 to 315 tons series for higher-tonnage forming work.
Our cross shaft presses are manufactured using premium-grade materials and advanced engineering technology to ensure superior efficiency, durability, and reliable operation in demanding forging and pressing industries.
Technical Specification for Ring Frame Cross Shaft Press
|
Model |
Tonne |
BMW-63 |
BMW-100 |
BMW-160 |
|
Capacity In Tone At 20 Before BDC |
Tonne |
63 |
100 |
160 |
|
Stroke Adjustable |
Mm |
20-100 |
20-125 |
20-160 |
|
Fixed |
Mm |
100 |
125 |
160 |
|
Strokes Per Minute |
Spm |
60 |
45 |
40 |
|
Shut Height Over Bolster |
Mm |
350 |
400 |
425 |
|
Slide Adjustment |
Mm |
80 |
100 |
100 |
|
Depth Of Throat |
Mm |
280 |
340 |
415 |
|
Slide Area LRxFB |
Mm |
510×410 |
610×560 |
00×640 |
|
Bolster Area LR X FB |
Mm |
840×540 |
1070×660 |
1270×800 |
|
Bolster Thickness |
Mm |
100 |
110 |
150 |
|
Main Motor |
Kw/Rpm |
5.5/1500 |
7.5/1500 |
15/1500 |
|
Distance From Floor To Top Of Bolster |
Mm |
900 |
900 |
900 |
