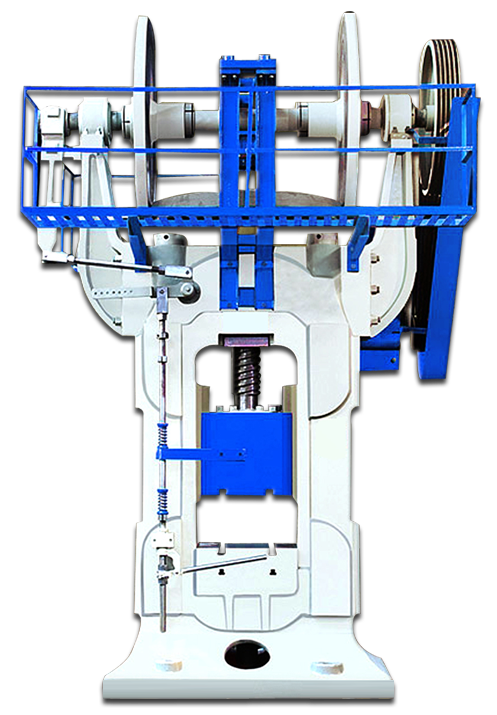

» Friction Screw Press Manufacturer in India
- Home
- /
- Power Presses
- /
- Friction Screw Press
Power Presses Range
Other Machines
Technical Specification for Friction Screw Press
| Model: | FSP-50 | FSP-100 | FSP-200 | FSP-300 | FSP-400 | FSP-500 |
| Capacity | 50 tons | 100 tons | 200 tons | 300 tons | 400 tons | 500 tons |
| Dia. of Screw | 4″ | 5″ | 6½” | 8″ | 9½” | 11″ |
| Stroke of Press | 8″ | 11″ | 14″ | 16″ | 18″ | 20″ |
| Strokes per Min | 40″ | 25″ | 20″ | 15″ | 10″ | 10″ |
| Table to Slide (max) | 14″ | 18″ | 22″ | 25″ | 28″ | 32″ |
| Table to Slider (min) | 6″ | 7″ | 8″ | 9″ | 10″ | 12″ |
| Size of Table | 15″x14″ | 19″x18″ | 22″x21″ | 25″x24″ | 28″x28″ | 30″x30″ |
| Distances Table to Guides | 6″ | 8″ | 10″ | 12″ | 14″ | 16″ |
| Distances b/w Columns | 16″ | 20″ | 23″ | 26″ | 30″ | 32″ |
| Distances b/w Guides | 12″ | 14″ | 17″ | 19″ | 22″ | 24″ |
| Bore in Table | 3″ | 4″ | 5″ | 6″ | 6″ | 6″ |
| Bore in Ram (shank dia) | 1½” | 2″ | 2½” | 3″ | 3″ | 4″ |
| Dimension of Ram | 12″x12″ | 14″x14″ | 17″x17″ | 19″x19″ | 21″x22″ | 24″x24″ |
| T Slot in Table | 5/8″ | 5/8″ | 5/8″ | 1″ | 1″ | 1¼” |
| T Slot in Ram | 5/8″ | 5/8″ | 5/8″ | 3/4″ | 1″ | 1″ |
| H.P Required | 7.5 h.p. | 10 h.p | 20 h.p | 30 h.p | 40 h.p | 50 h.p |
| R.P.M | 960 | 960 | 960 | 960 | 960 | 960 |
| Height | 9′-4″ | 10′-4″ | 12′-4″ | 14′-6″ | 15′-6″ | 17′ |
