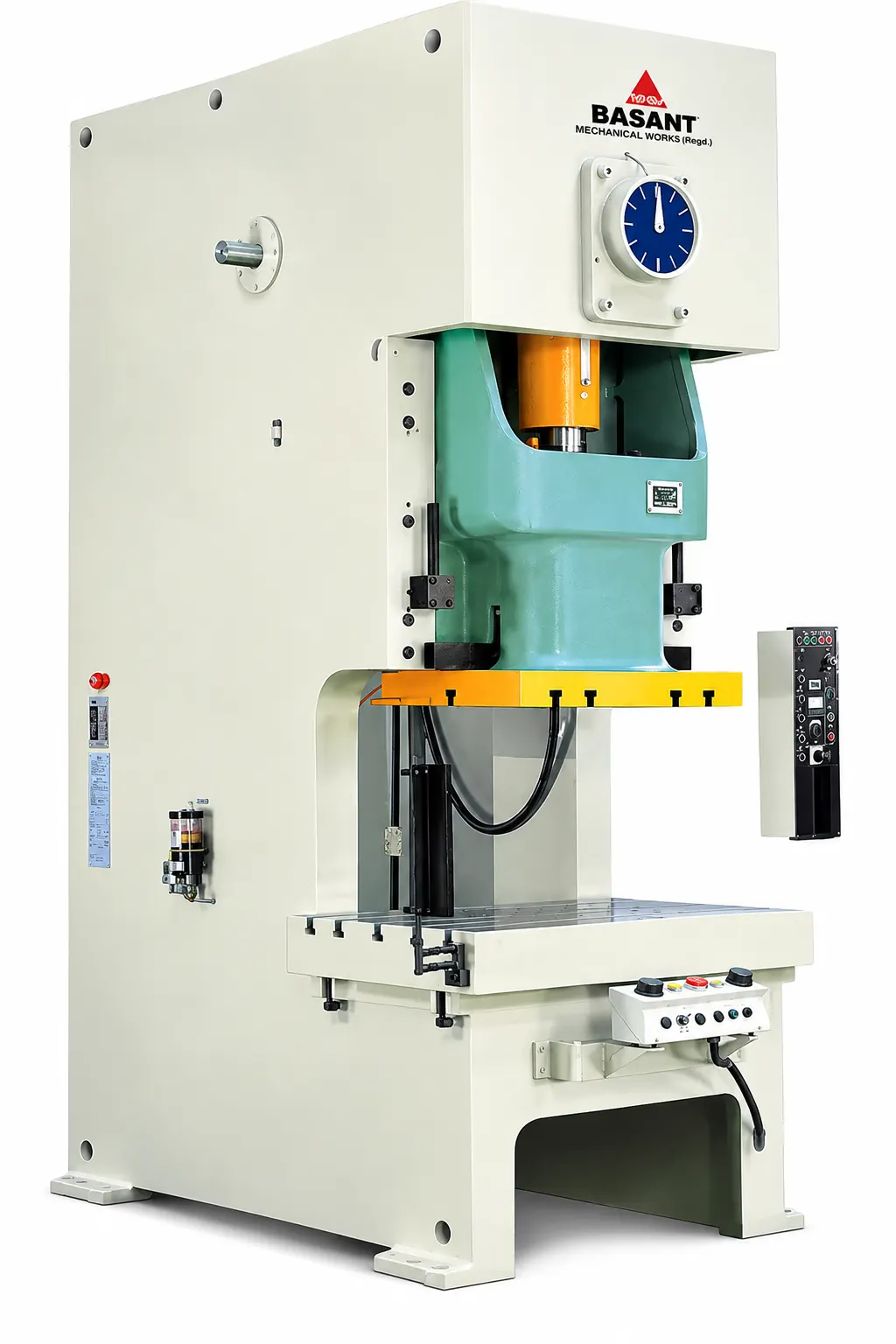

Ring Frame Cross Shaft Press
Basant Mechanical Works is a trusted manufacturer of Ring Frame Cross Shaft Press Machines designed for heavy-duty industrial applications requiring high strength, precision, and continuous performance. Our cross shaft presses are manufactured using premium-grade materials and advanced engineering technology to ensure superior efficiency, durability, and reliable operation in demanding forging and pressing industries.
Technical Specification for Ring Frame Cross Shaft Presses
Model |
Tonne |
BMW-200 |
BMW-250 |
BMW-315 |
Capacity In Tone At 20 Before BDC |
Tonne |
200 |
250 |
315 |
Stroke Adjustable |
Mm |
20-160 |
20-160 |
200 |
Fixed |
Mm |
160 |
160 |
|
Strokes Per Minute |
Spm |
40 |
35 |
30 |
Shut Height Over Bolster |
Mm |
450 |
500 |
500 |
Slide Adjustment |
Mm |
100 |
100 |
100 |
Depth Of Throat |
Mm |
415 |
475 |
490 |
Slide Area LRxFB |
Mm |
800×640 |
1000×750 |
1000×750 |
Bolster Area LR X FB |
Mm |
1270×800 |
1500×900 |
1500×900 |
Bolster Thickness |
Mm |
175 |
200 |
225 |
Main Motor |
Kw/Rpm |
15/1500 |
18.5/1500 |
22/1500 |
Distance From Floor To Top Of Bolster |
Mm |
900 |
900 |
900 |
