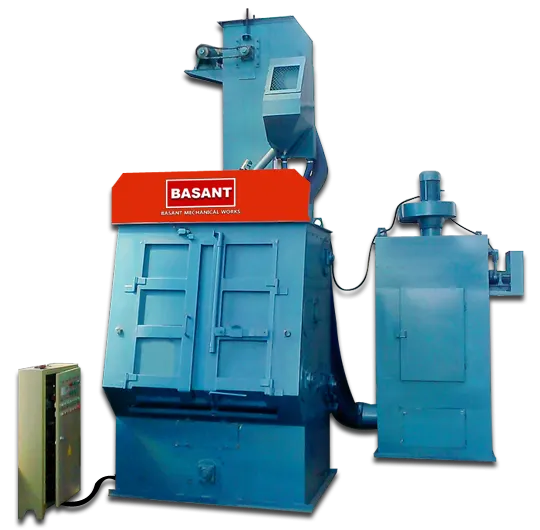

Tumble Type & Turn table type shot blasting machine manufactured by us are available in specific chamber sizes. The design and fabrication of these machines are backed by a decade of experience. we have been successful in developing these machines through sustained research & development works and we can say that these are best available in the market.
Technical Specification for Shot Blasting Machine Tumble Type
Model | Chamber Size | Machine Dimensions LxWxH | Conveyor Drive | Rotor Drive Motor | Blower Drive Motor | Elevator Drive Motor | Loader Drive Motor | Unloader Drive Motor | Rotor Dia | Batch Capacity | WT.OF Machine (Approx) | Type Of Dust Collector |
| RSHB-2027 | 20″*27″ | 9’*5’*12′ | 1.0 H.P. | 5.0. H.P. | 3.0. H.P. | 1.0 H.P | 1.0 H.P | 1.0 H.P | 305 MM | 150-200 Kg | 2500 Kg. | Dry Type |
| RSHB-2736 | 27″*36″ | 10’*6’*13′ | 1.0 H.P. | 7.5 H.P. | 3.0 H.P. | 1.0 H.P. | 1.0 H.P. | 1.0 H.P. | 380 MM | 300-350 Kg. | 4000 Kg. | Dry Type |
| RSHB-3642 | 36″*42″ | 11’*7’*15′ | 2.0 H.P. | 10 H.P. | 5.0 H.P. | 2.0 H.P. | 2.0 H.P. | 2.0 H.P. | 480 MM | 850-900 Kg | 6000 Kg | Dry Type |
